Re: Review of Avalon-4.1
by
philipma1957
on 24/02/2015, 13:46:30 UTC
Can anybody post what are the settings for "Chip Frequency" and "Chip Voltage" when running in ECO mode?

Furthermore, can "Chip Frequency" be modified at any interval? Is "Chip Frequency" directly related to "Chip Voltage", is there any table for all possible combinations of  "Chip Frequency" and "Chip Voltage" (combined)?


chip frequency is directly related to


chip frequency setting on the custom page
I use 370:360:340
Default is 450:390:370

use custom
Set your volts to 7750
use auto voltage =true.

and then tinker with chip frequency setting  you will get lots of results for frequency. auto volts will find the best volts for that freq.





volts can be set at:
 8250
 8125
 8000
 7875
 7750
 7625
 7500
 7375
 7250
 7125
 7000
 6875
 6750
 6625
 6500


I do all custom settings.  I don't ssh.

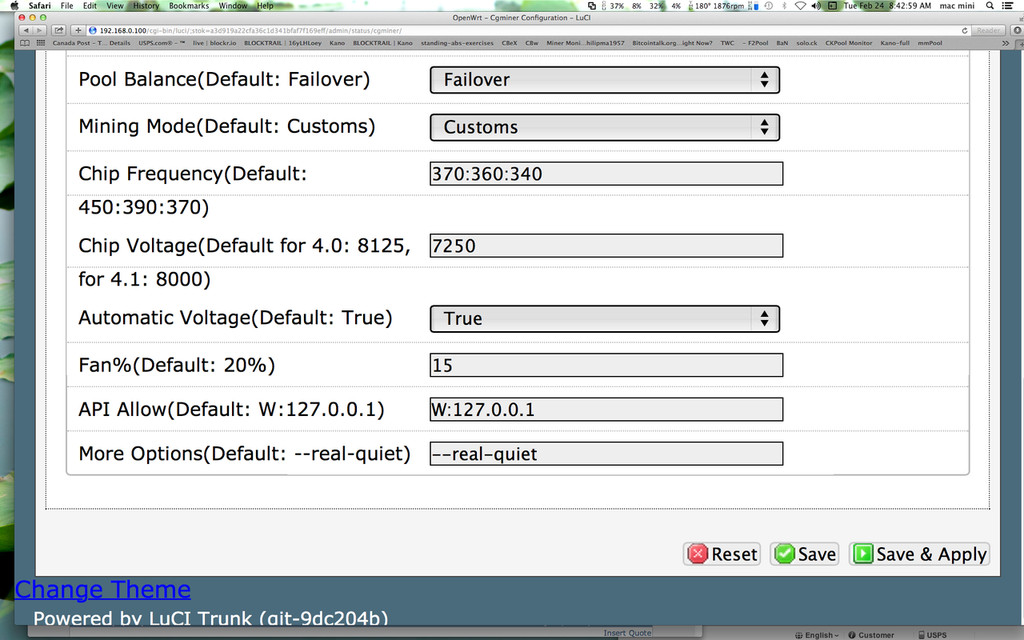

I found with volts on auto the software does the work. my current custom setting is :

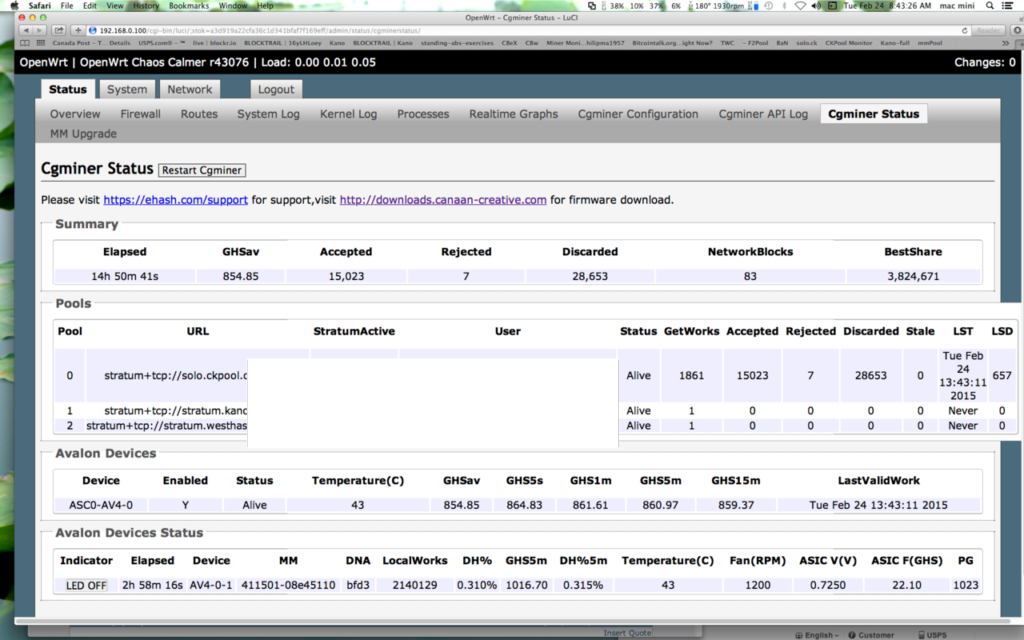

I get this result and use  480 watts to do it.  this is 480/854 = .562 watts a gh

 if I go to custom I get 244 watts and 500gh that is .488 watts a gh .  diff and price does not require me to do eco right now.
