[GUIDE] BitFury Miner Support/Tuning

[GUIDE] BitFury Miner Support/Tuning
[GUIDE] GridSeed 5-Chip USB & Blade Miner Support/Tuning
[GUIDE] Innosilicon [A1 Booster + A2 Terminator] Support/Tuning
[GUIDE] Hashra [Lunar Miners] Support/Tuning

Code:

__________.__ __ ___________ _____ .__
   \______ \__|/ |\_ _____/_ _________ ___.__. / \ |__| ____ ___________
   | | _/ \ __\ __)| | \_ __ < | | / \ / \| |/ \_/ __ \_ __ \
   | | \ || | | \ | | /| | \/\___ | / Y \ | | \ ___/| | \/
   |______ /__||__| \___ / |____/ |__| / ____| \____|__ /__|___| /\___ >__|
   \/ \/ \/ \/ \/ \/
  _________ __ /\ ___________ .__
/ _____/__ ________ ______ ____________/ |_ / / \__ ___/_ __ ____ |__| ____ ____
\_____ \| | \____ \\____ \ / _ \_ __ \ __\ / / | | | | \/ \| |/ \ / ___\
/ \ | / |_> > |_> > <_> ) | \/| | / / | | | | / | \ | | \/ /_/ >
/_______ /____/| __/| __/ \____/|__| |__| / / |____| |____/|___| /__|___| /\___ /
   \/ |__| |__| \/ \/ \//_____/

Thread is in construction!!!

The goal of this thread is to consolidate all informations to operate and fine tune the bitfury miner.

Development:
- BitFury Testers/Devs

Seller:
- BitFury EU/WordWide
- BitFury US

Case:
- Custom Case Design for Bitfury Miners
- All aluminum open air case for BitFury miners

Raspberry Pi SD Image (only v2+ m-boards)
- ver. 1: 2013-Aug-29_BitfuryRasPi_v0.1
- ver. 2: 2013-Sep-27_BFSB_GM2

Information:
- Instructions for BitFury Miner
- eagle .sch format (M-Board v2.3, H-Card v1.2)

Mining Software Repositories: (use with caution, work in progress!)
- Chainminer - Orginal BitFury Software
- BFGMiner by Luke-Jr

Quote from: Luke-Jr on September 05, 2013, 05:07:13 AM

Clarification: BFGMiner's "littlefury" branch (which should really be renamed "bitfury", and probably will be at some point) is currently tested with LittleFury and generic GPIO only, and should also work with Metabank's rigs, but is still strictly a work-in-progress and not considered a stable or even testing release. I haven't confirmed yet that it is compatible with the board design referenced in the OP, but if not I certainly plan to port it ASAP.

- CGMiner by anajavi

Quote

compile with --enable-bitfury
con is not going to make support for our hardware because it only runs on linux, pi and needs root access
so this is as far as cgminer support will go from our side Sad

./cgminer --help
--bitfury-board-type Bitfury board type, 0=i2c, 1=mboardv1, 2=mboardv2 (default: 0)
--bitfury-options Set bitfury chip options chip:speed,chip.. eg. 0:55,1:56... default: ALL:54
old M-board probably doesn't work because no-one has tested it
so use --bitfury-board-type 2

- CGMiner by KNK

Quote from: KNK on October 09, 2013, 08:24:23 PM

Anyone willing to help testing a cgminer fork changes with a full kit or at least one board in each bus (A-D)?

In sync with the latest Legkodymov's miner. For BFSB master boards you should leave BITFURY_MUX_OE undefined in bitfury-config.h and change:

Code:

#define BITFURY_MAXCHIPS 100
#define BITFURY_MAXBANKS 1
#define BITFURY_BANKCHIPS 100

Code:

#define BITFURY_MAXCHIPS 256
#define BITFURY_MAXBANKS 4
#define BITFURY_BANKCHIPS 16

IRC:
- BitFury Support (Server: ircnet.eversible.com / Channel: #bfsbsupport)

Instructions:
- EU/Worldwide BitFury Guide: Readme BSFSB v0.1 (using m-board v2)
- US BitFury Guide: **US** BitFury Setup Guide (using m-board v1)

Raspberry Pi:
- RPi Beginners

Know Errors:
- Hardware: Soldering errors!

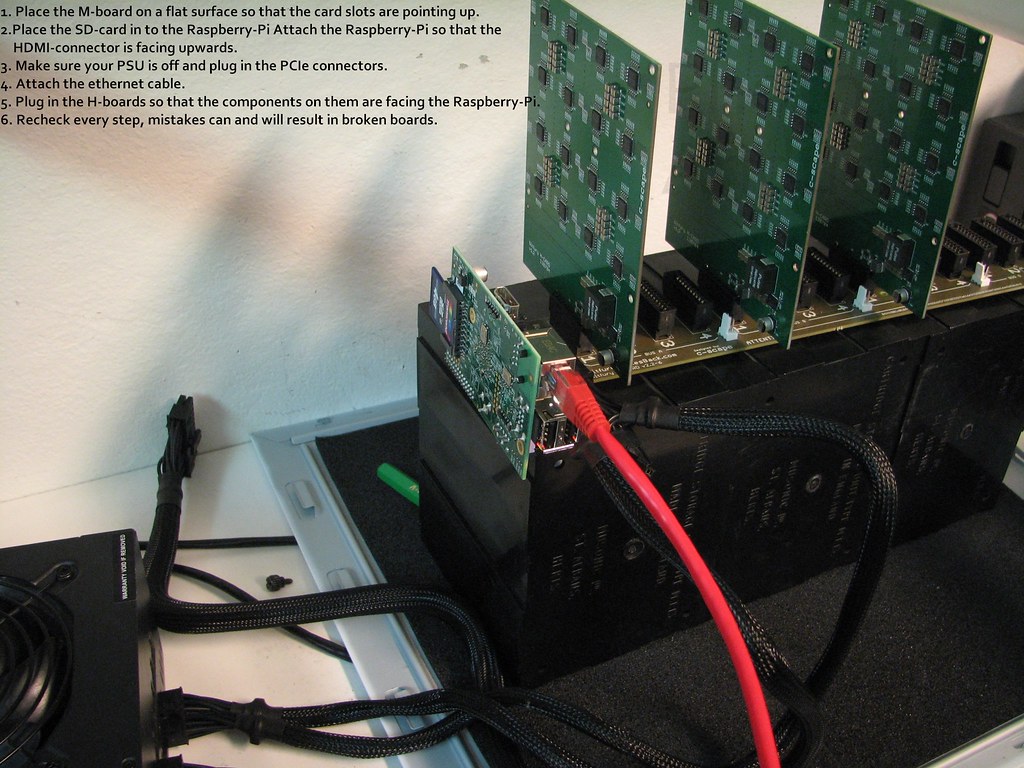

Installation:

Quote from: Isokivi on August 28, 2013, 12:28:43 PM

Important:

Also please note that if you are not populating the M-board fully the best results will be achieved by spreading the H-boards evenly between the four channels.
