Re: Official FutureBit Moonlander 2 Driver and Support Thread
ScoobysportD, so what is your average Vcore voltage to run them that high?
I can not seem to get past 832 clock on both mine with a good PS and fans keeping the rear heat sink cool.
When I get to 852 I get too many hardware errors (30% or so). Vcore I have tried up to 8.2 but did not want to go any higher. I assume you are runing higher than that?
Thanks,
Bob
I just measured them:

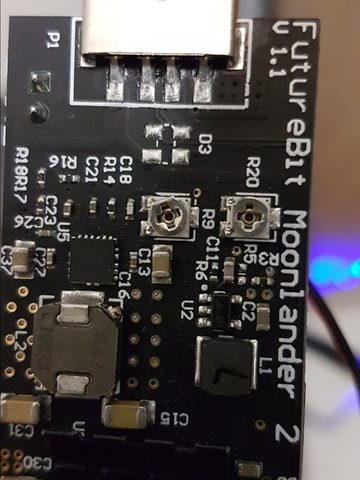

2 run at 0.8vcore, 1 on 0.82. Not bad for eyeballing it with such sensitive pot's! This close up is of the one running at 0.82 and this one draws the highest amps of the 3 i have now. This should give everybody an idea/starting point on how to set vcore and memclock.
Link for larger pic:
https://myalbum.com/photo/cJYYyULmjyBK/1k0.jpg
They've been running basically for 4 days straight now with low error rates as you can see in my previous posts.
Quote
The one sticking upwards just had a spike on this pic, up to 2.55amp. Besides that, it runs on 2.20-2.35 amp just like the other two, which also every now and then have a quick spike in amp draw but then immediately turn back down to 2.20-2.35. It seems to happen more when they run warm/hot. (one of the fans still is not functioning properly, and it's the one that was supposed to cool the one MLD thats sticking out upwards.)
That's good to see. At least we know they can do more than the 2.1 amps per port they are rated for. I just hope it lasts.Can you link your fans?
You bet!
https://www.newegg.com/Product/Product.aspx?Item=9SIAE6Y6JR4902&Tpk=9SIAE6Y6JR4902
Took 2 weeks to come from China.
Bob
ps; damn it took me long enough to put 1+1 together haha, Finless Bob
Pleasure discussing these things with an android mod legend
