Just an update, still working on it. I've removed all the ASICs. The short is no longer present, so now I have to solder the spares back on.
Hopefully, it will be completed tomorrow (I'm leaving to work in about 45 minutes, so can't work on it now).
I also have modified firmware in hand, so I'll be able to test it right away
Hopefully, it will be completed tomorrow (I'm leaving to work in about 45 minutes, so can't work on it now).
I also have modified firmware in hand, so I'll be able to test it right away
@zipiju

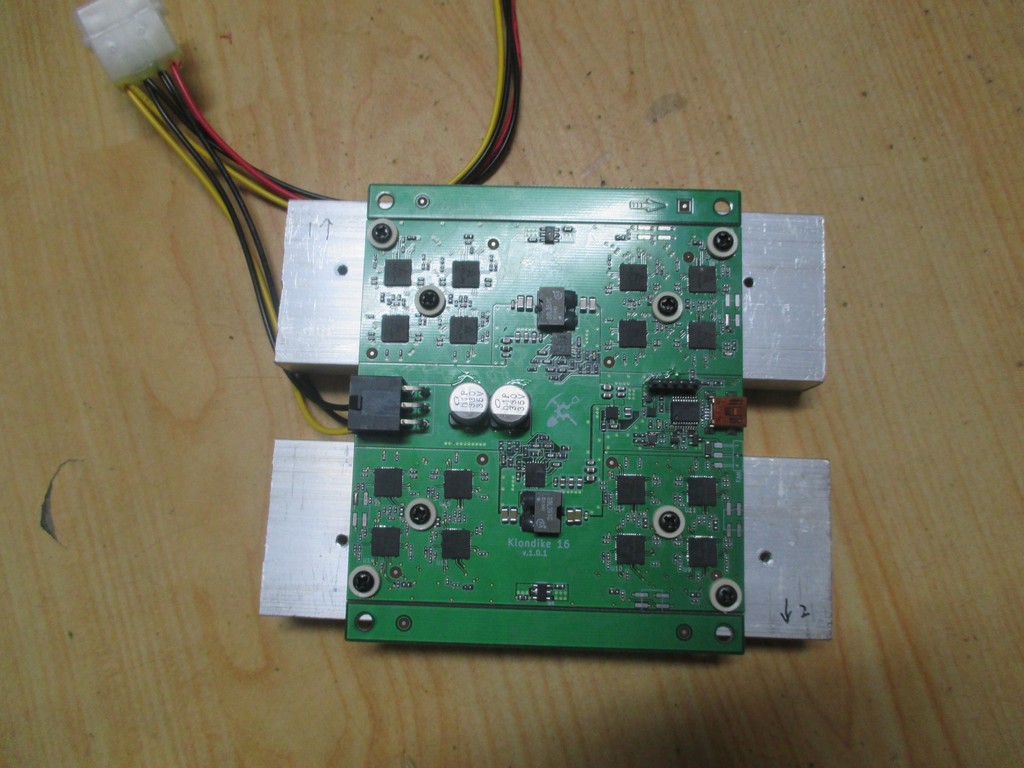

I have made two PCB(ver. K16s-1.0.1)
I found mismatch Schematic and Partlist.
There are some errors in the Partlist.
Part Schematic PartList
------------------------------
R21 10K 390R
R45,R46 390R 10K
R22 100R 49K9
R24,R25 1K 2K2
------------------------------
R45,46 should be 390R. R24,25 should be 1K. R22 should be 100R and the R21 should be 10K. Basically, always look on the schematics, because BOM can be wrong.
And is it working? I mean no magic smoke escaping? I'll upload the modified firmware to the Git
BTW, I wanted to finish mine today, but 2 hours that I had free today wasn't enough to do so. It wil l be the same tomorrow and friday too. I'm really sorry, but nothing I can do about this. I will have to wait till the weekend to finally complete it.
