Re: Claymore's Dual Ethereum AMD+NVIDIA GPU Miner v15.0 (Windows/Linux)
by
deadsix
on 02/08/2020, 20:41:51 UTC
⭐ Merited by vapourminer (1)

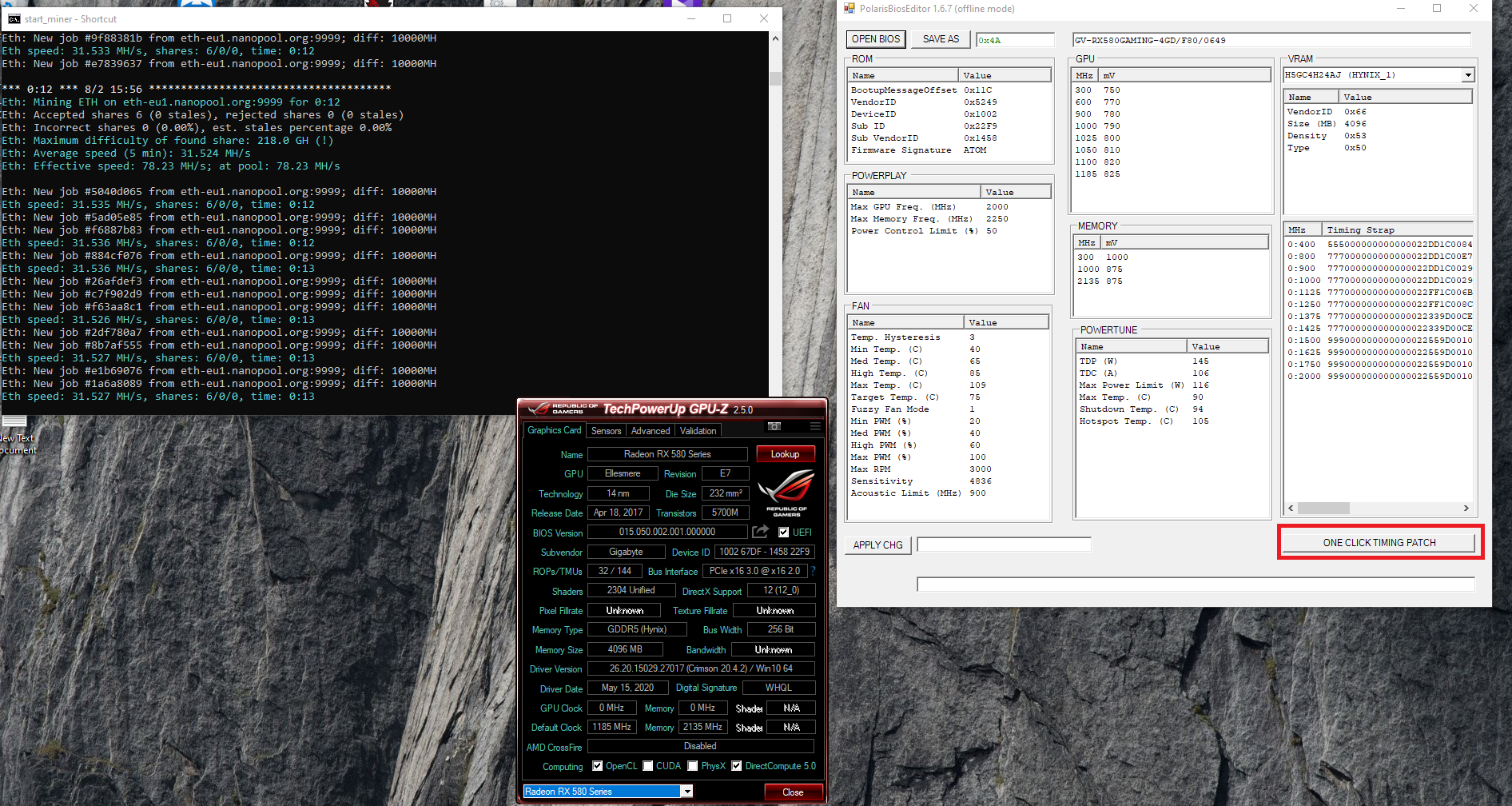

after using ONE CLICK TIMING PATCH  of PolarisBiosEditor I got this result:
Don't just use one click timing patch. It copies the 1625 strap to the other straps including the 1500 one. I got just over 2000MHz with that. By manually selecting and copying the slightly looser 1750 strap to the 1875 and 2000 straps I was able to stably hit 2175MHz and a higher hash rate of 15.5MH/s on an RX560. So best to experiment to see which one gives the best result.

2175 is pretty damn high for the memory clock 24/7. Remember, these memory chips were designed to run at 16Ghz (2000 clock), the ones that made the cut went into the 16ghz GPU's (like the Rx 580 8Gb, the Rx 590 ) and the ones that didnt were slapped onto boffins at 14Ghz ( 1750 clock) and even lower end 12Ghz (1500 clock). While you CAN oc them to speeds over 2000, its generally recommended to keep the speeds as low as possible and achieving higher hashrate with tighter timings ( better straps ) - keeps the chips from burning out. You NEED to undervolt the memory for 24/7 use and not use it at stock volts. So a 1500 strap running at say 1925 is preferable to a 1625 strap running at 2125 for a similar hashrate.
