Jig for Metal Seed Backup using Washers
by
n0nce
on 02/10/2021, 13:50:26 UTC
⭐ Merited by Welsh (60) ,LoyceV (42) ,ABCbits (22) ,fillippone (21) ,ETFbitcoin (12) ,dkbit98 (11) ,vapourminer (9) ,hugeblack (8) ,LFC_Bitcoin (6) ,o_e_l_e_o (4) ,Pmalek (4) ,The Pharmacist (3) ,RickDeckard (2) ,Quickseller (2) ,Rikafip (2) ,SFR10 (1) ,suchmoon (1) ,hosseinimr93 (1) ,BlackHatCoiner (1) ,Husna QA (1) ,Upgrade00 (1) ,m2017 (1) ,Uang_kartal (1)

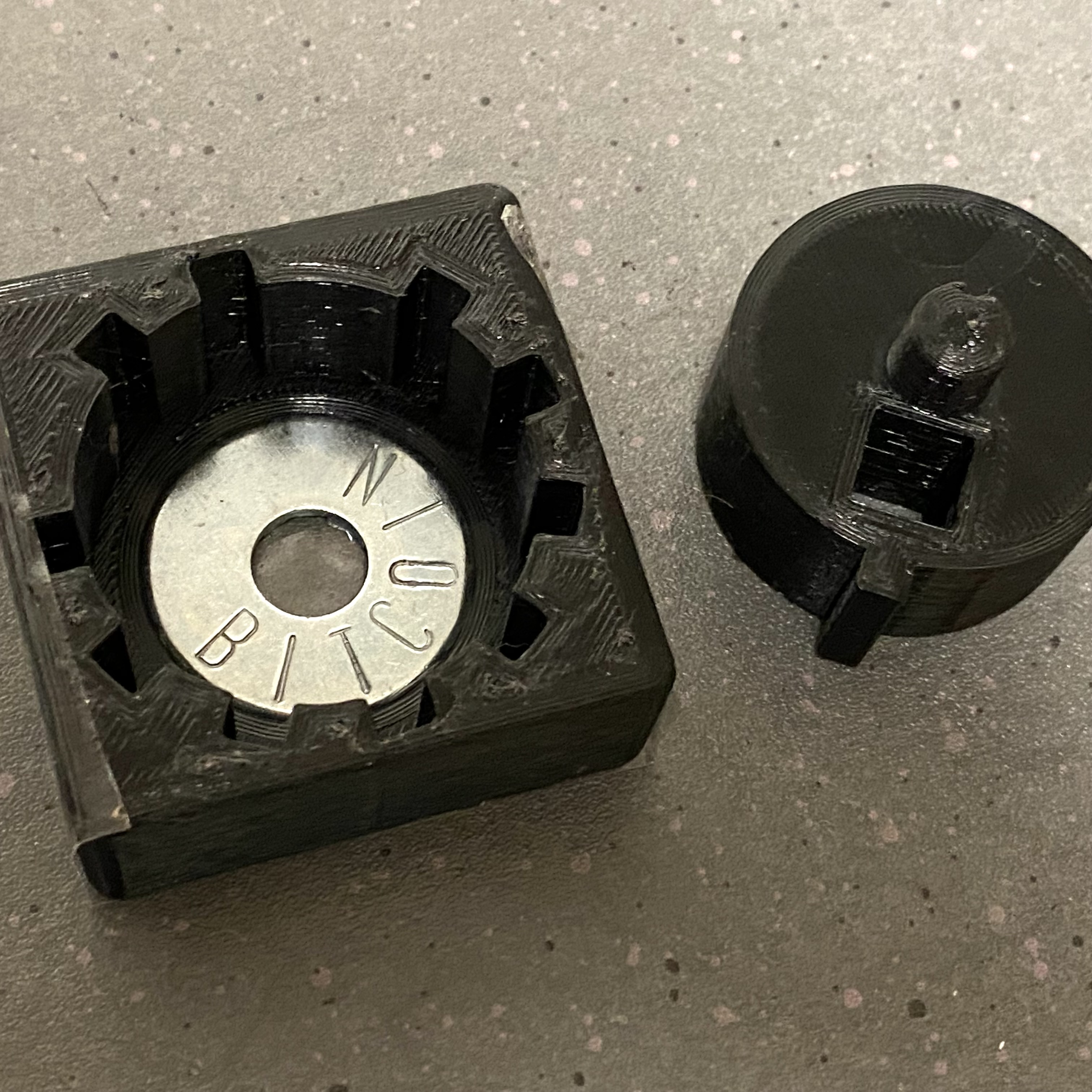

n0nce's Steel Washer Backup jig



Backup pure material cost: 4€
Requirements: stamps ~20€, jig ~10€
Go big or go home! 30x10.5mm washers!
6mm tall letters

PM or comment if interested Any custom size is possible!

The idea is inspired from econoalchemist's blog post Securing a Bitcoin seed phrase in stainless-steel washers. and it's very great:
  • Materials cost under 5 bucks (€, $, £, it's always the same ballpark). I paid around 3€ for 32 washers and maybe 1€ for the screw and nut.
  • No shipping cost since everyone has a hardware store nearby.
  • Anonymous since nobody knows what you use basic metal hardware for.
  • All stainless steel, quite durable, on par with commercial Bitcoin backup products.
  • Greater thickness than some commercial products

Backstory:
After reading the aforementioned blog post, I went to download the file for the jig from blockmic. It can be found in their Thingiverse and they wrote a very good article about it.

But: For one, I wanted to use larger washers. In fact, I think I got the largest that I could find in the first hardware store I walked into. A reason for this is that larger washers are usually also thicker and thus more durable, and the other reason is simply because the stamps I already had were too large for such small washers.

I have 6mm high letters and the stamps are 9x9mm in size.

So I did the natural thing: create a new 3D design from scratch, which is completely parametrized. This allows me to adapt it for anyone with different sized washers and / or stamps! Smiley Then did a few iterations, as shown here, and now it's ready to rock!




PSA: I can achieve much better print quality than what you see in the images, but I am finishing up some old rolls which have taken a lot of humidity so the results don't look as good. Also, I used more perimeters than CryptoCloaks since it makes things more sturdy. Finally, the darker colour you use, the more print lines show (especially when photographed) Grin
