Nicely formatted version available at dogiecoin.com!

Contents:
0a) What to Expect
0b) What You Need
1) Powering
2) Cooling
3) Configuration
4) Troubleshooting
5) Where to buy

0a) What to Expect (top)

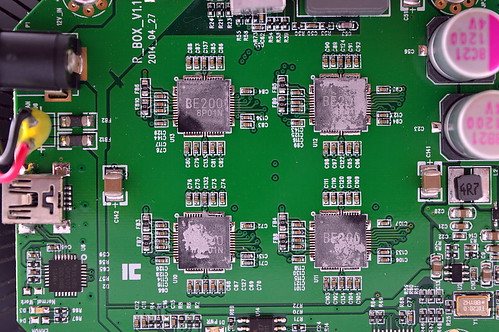

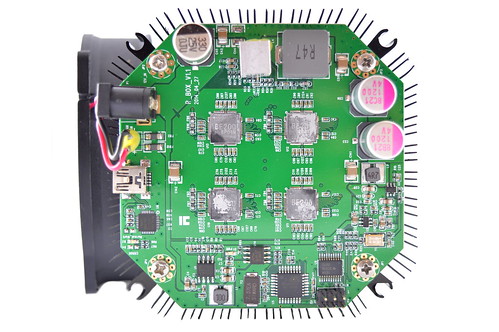

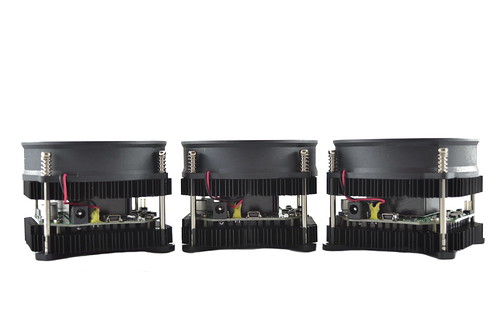

The RockMiner R-Box replaces the Cube in the ASICMiner line up at just 10% of the power consumption. This is the first implementation of ASICMiner's

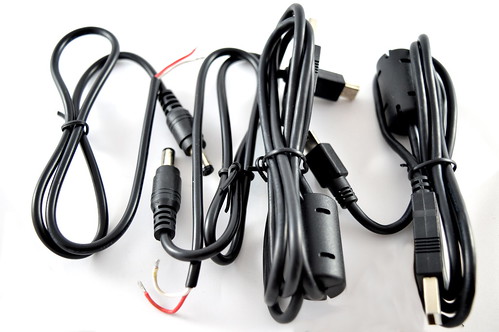

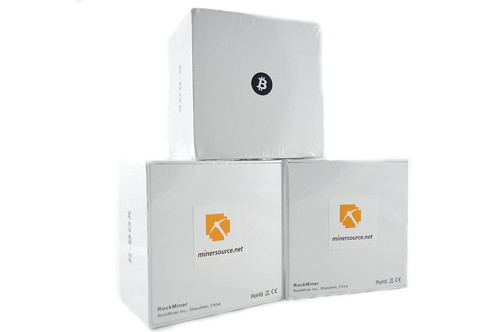

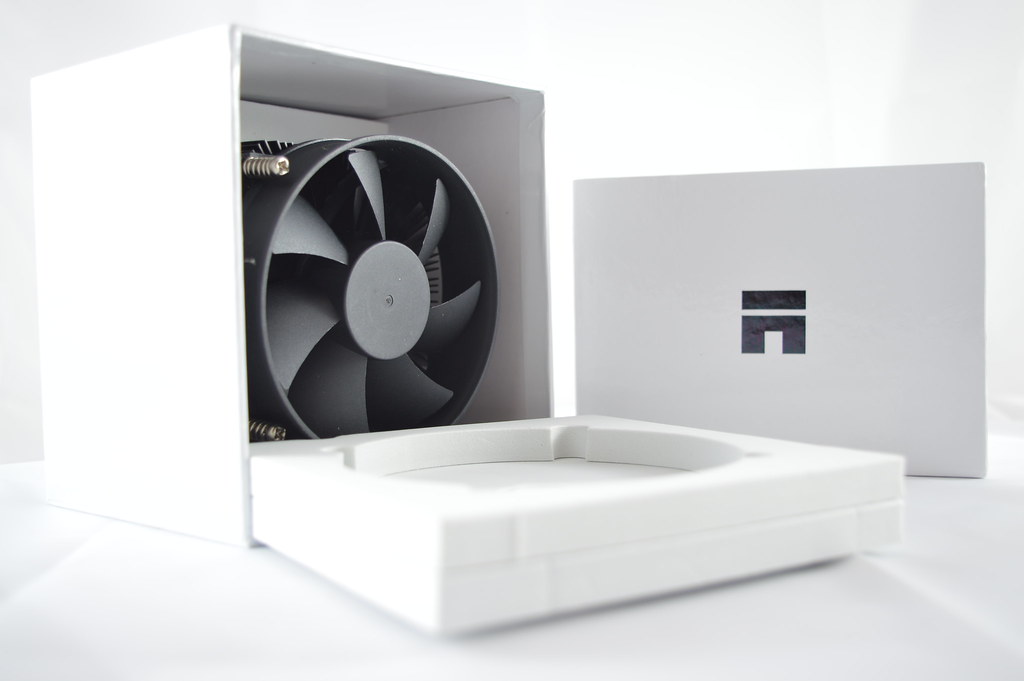

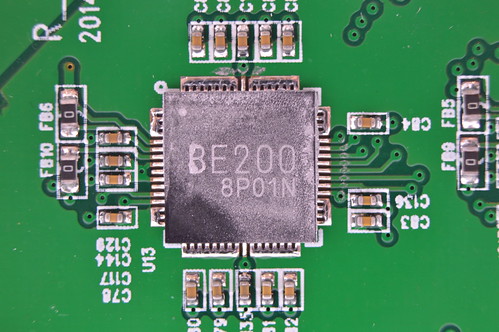

generation 3 40nm BE200 chip. Each unit ships in a custom made box with custom padding and is vacuum sealed from the factory. Cables included will
depend on your reseller.

Chips	4x ASICMiner Gen3
Hashrate	~32-37GH
Rated Voltage	12V
Rated Current	3.5-4A
Power.Consumption	40-50W

0b) What You Need (top)
In addition to a host windows PC, you will need a few accessories and a mains power adapter.

Click your flag to find everything you need to get started at Amazon!

1) Powering (top)

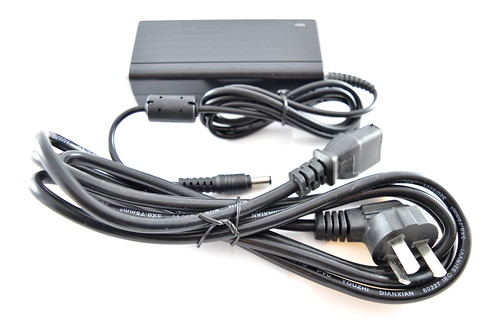

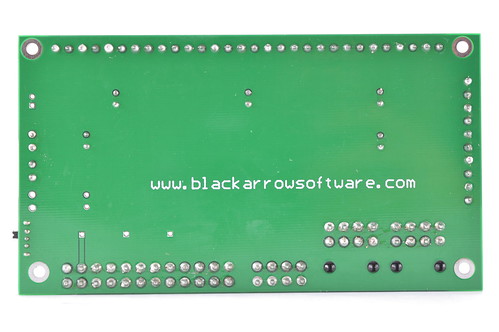

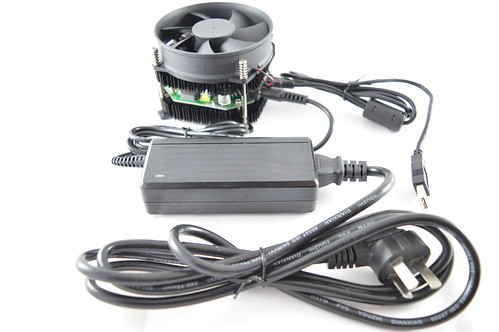

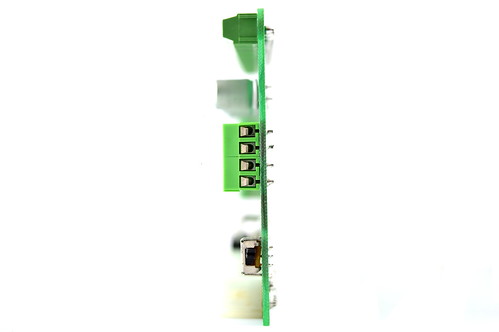

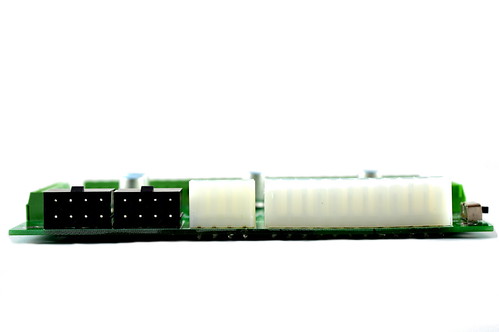

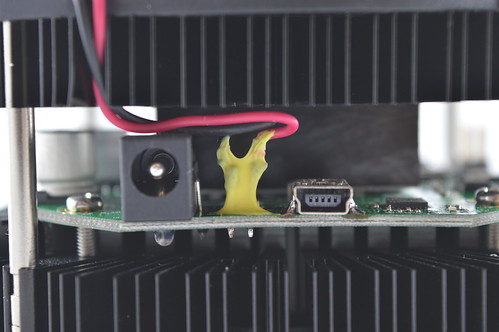

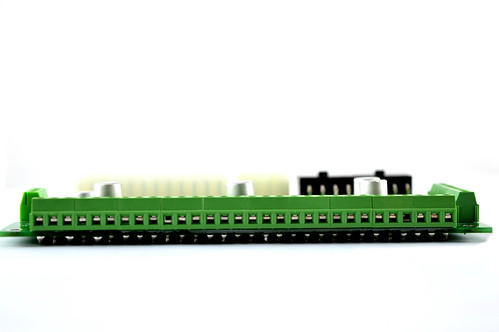

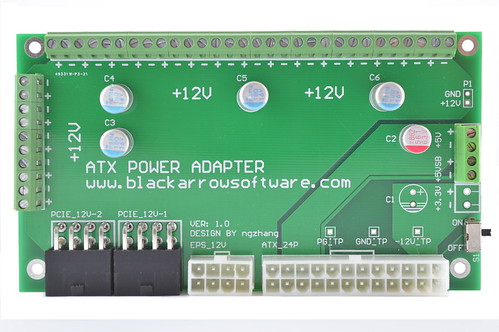

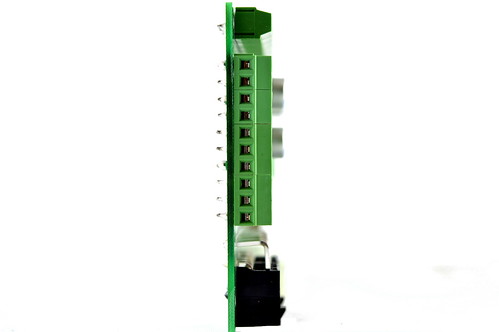

R-Boxes do not come with a power supply, and you will need a 2.5mm 12V mains power adapter. Also pictured is the method when using a BlackArrow
power distribution board. I can not recommend its use due to the pins being openly exposed on the back side. Live to ground can so easily be shorted with a
finger, posing both a safety and fire risk.

2) Cooling (top)

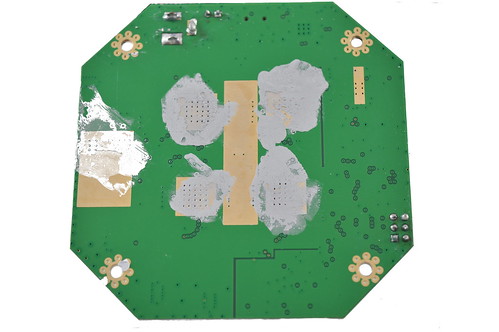

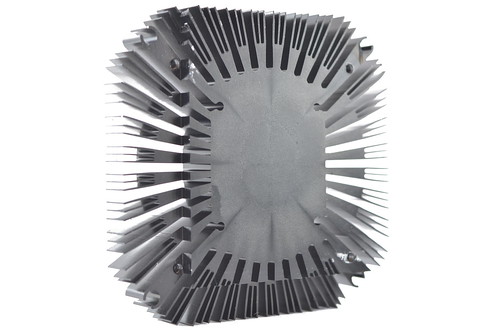

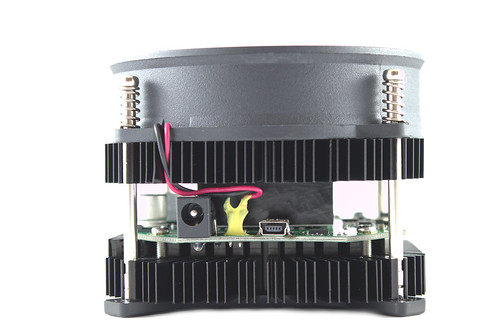

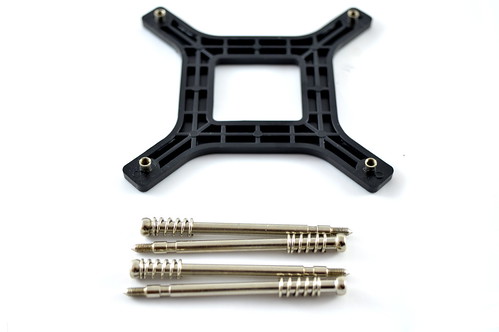

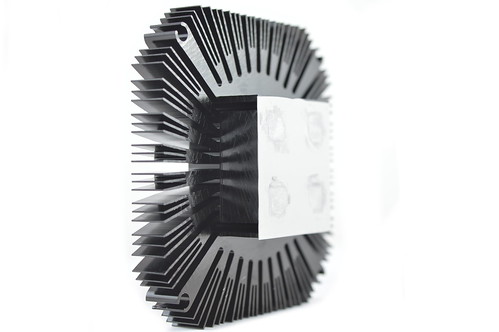

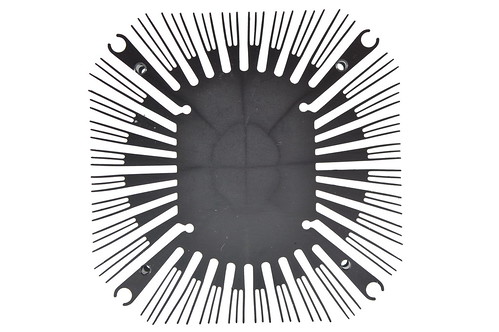

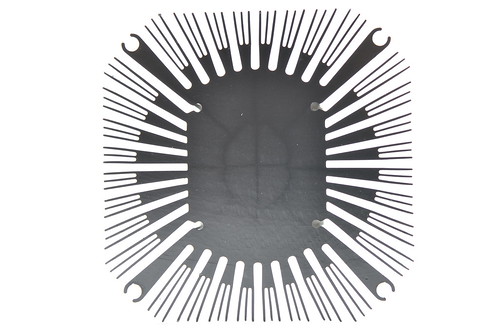

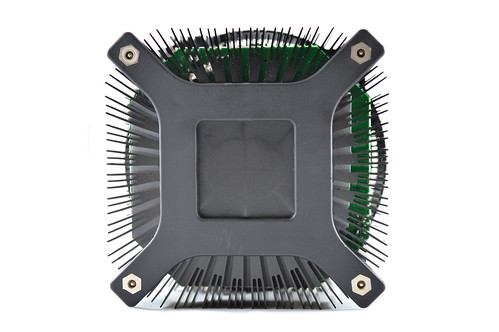

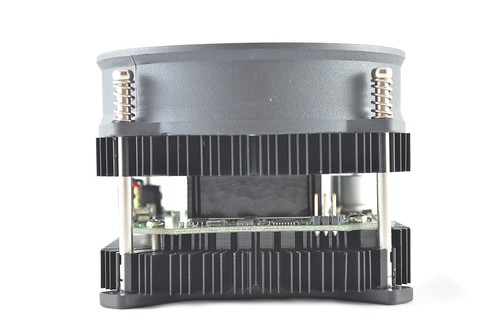

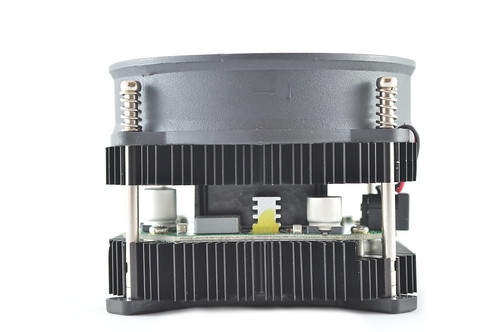

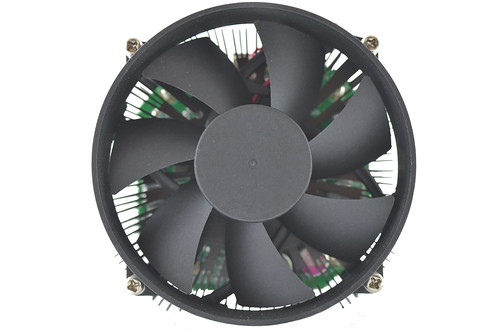

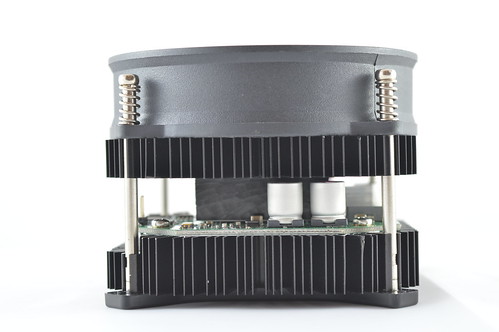

The R-Box is self sufficient in cooling terms and utilises custom aluminium finned heatsinks on the top and bottom of the board. A low profile frame
92mm fan provides ample airflow while remaining effectively silent.

3) Configuration (top)
R-Boxes can be run using CGMiner or BFGMiner. A Windows based PC is recommended although a similar process can be applied on a Raspberry Pi.

Using CGMiner:

Download the latest version of CGMiner and Zadig.
Extract, and run the zadig application.
Select "CP21202 USB to UART Bridge Controller" and then click "Replace Driver". You only have to do this once per computer.
Create a new file in notepad and enter pool information as below. Save it as a .bat in the same folder as CGMiner.
Run the bat file to start mining.

Antpool

Code:

cgminer.exe -o stratum.antpool.com:3333 -u dogie_RockMiner -p 123

BTCGuild

Code:

cgminer.exe -o stratum.btcguild.com:3333 -u dogie_RockMiner -p 123

GHash IO

Code:

cgminer.exe -o us1.ghash.io:3333 -u dogie.RockMiner -p 123

Using BFGMiner:

**If you have previously installed drivers using Zadig as above, you will need to reverse this to use BFGMiner**.
Download the latest version of BFGMiner (Win64 version).
Create a new file in notepad and enter pool information as below. Save it as a .bat in the same folder as CGMiner.
Run the bat file to start mining.

Antpool

Code:

bfgminer.exe -o stratum.antpool.com:3333 -u dogie_RockMiner -p 123

BTCGuild

Code:

bfgminer.exe -o stratum.btcguild.com:3333 -u dogie_RockMiner -p 123

GHash IO

Code:

bfgminer.exe -o us1.ghash.io:3333 -u dogie.RockMiner -p 123

4) Troubleshooting (top)
TBD as problems arise.
